Plot SPC charts with automated limit recalculation

autospc() creates a statistical process control chart from a dataframe, applying the Stable Shift Algorithm to automate recalculation of control limits.

Usage

autospc(
  data,
  x,
  y,
  n,
  chart_type = NULL,
  period_min = 21,
  baseline_length = NULL,
  shift_rule_threshold = 8,
  baseline_only = FALSE,
  establish_every_shift = FALSE,
  no_regrets = TRUE,
  overhanging_reversions = TRUE,
  max_exclusions = 3,
  highlight_exclusions = TRUE,
  mr_screen_max_loops = 1L,
  centre_line_tolerance = 0,
  floating_median = "no",
  floating_median_n = 12L,
  plot_chart = TRUE,
  show_limits = TRUE,
  show_mr = TRUE,
  write_table = FALSE,
  verbosity = 0L,
  log_file_path = NULL,
  title = NULL,
  subtitle = NULL,
  use_caption = TRUE,
  override_x_title = NULL,
  override_y_title = NULL,
  override_y_lim = NULL,
  x_break = NULL,
  x_date_format = "%Y-%m-%d",
  x_pad_end = NULL,
  extend_limits_to = NULL,
  r1_col = "orange",
  r2_col = "steelblue3",
  point_size = 2,
  line_width_sf = 1,
  include_annotations = TRUE,
  basic_annotations = getRversion() < "4.3.0",
  annotation_size = 3,
  align_labels = FALSE,
  flip_labels = FALSE,
  upper_annotation_sf = NULL,
  lower_annotation_sf = NULL,
  annotation_arrows = FALSE,
  annotation_arrow_curve = 0.3,
  override_annotation_dist = NULL,
  override_annotation_dist_P = NULL
)

Arguments

data

A data frame. For an XMR, C or C' chart, must have columns for:

the subgrouping variable, to be plotted on the horizontal axis, (x);
the variable of interest to be plotted on the vertical axis (y);
and optionally, a title and subtitle for the plot.

For a P or P' chart, must have columns for:

the subgrouping variable, to be plotted on the horizontal axis, (x);
the total count or denominator (n);
the count meeting criteria, or numerator (y);
and optionally, a title and subtitle for the plot.

x

Name of column (passed using tidyselect semantics) to use as subgroups on the horizontal axis of the chart.

y

Name of column (passed using tidyselect semantics) to use as:

the variable to be plotted for XMR charts,
count (plotted on the vertical axis) for C and C' charts,
numerator of the proportion (plotted on the vertical axis) for P and P' charts.

n

Name of column (passed using tidyselect semantics) to use as denominator for P and P' charts.

chart_type

The type of chart you wish to plot. Available options are: "XMR", "MR", "C", "C'", "P", "P'".

Algorithm Parameters

Parameters that control behaviour of the algorithm used to re-establish control limits.

period_min

The minimum number of points (subgroups) per period, i.e. the minimum number of points required to form control limits.

baseline_length

Integer, overrides period_min for the first calculation period only, if specified

shift_rule_threshold

The minimum number of consecutive points above or below the centre line constituting a shift (or "rule 2") break.

baseline_only

Boolean - if TRUE, do not recalculate control limits, instead extend limits calculated from the first period_min points.

establish_every_shift

Boolean - whether to bypass the Stable Shift Algorithm and simply re-establish limits at every shift rule break (respecting period_min)

no_regrets

Boolean signifying which version of the algorithm should be used. Defines whether limits can change as more data is added or not.

overhanging_reversions

Boolean determining whether rule breaks in the opposite direction to a rule break triggering a candidate recalculation prevent recalculation even if they overhang the end of the candidate calculation period. Set to FALSE only with no_regrets = FALSE.

SPC Parameters

Parameters that control how cetnre line and control limits are established for each period, and details of how SPC rules are applied

max_exclusions

The maximum number of extreme points to exclude from limit calculations.

highlight_exclusions

Boolean signifying whether excluded points are greyed out.

mr_screen_max_loops

Integer or Inf specifying maximum number of times to recursively ignore mr values above the upper range limit when calculating xmr limits. Note this does not affect the calculation of the upper range limit on the mr chart.

centre_line_tolerance

Minimum difference between a point's vertical position and the centre line to count as "on the centre line" for the purposes ofshift rule breaks

floating_median

Whether to add a floating median line to the chart, calculated based on the final floating_median_n data points on the chart: "no" - do not display a floating median, "yes" - display a floating median, "auto" - display a floating median if and only if there is at least one point that is part of a shift rule break in the final floating_median_n data points on the chart.

floating_median_n

The number of points to use for calculation of the floating median, if present.

Output Type

Arguments that control how the result is outputted

plot_chart

Boolean specifying whether to plot the chart. If not, the data is returned with centre line, control limits and other analytic output appended as columns.

show_limits

Boolean controlling whether or not to display centre line and control limits

show_mr

Logical controlling whether the moving range chart is included in XMR chart

write_table

Boolean specifying whether to save the data as a CSV (useful for doing lots of charts at a time).

verbosity

Integer 0-2 specifying how talkative the algorithm is in the standard output log; the higher the number the more information is provided, none if 0.

log_file_path

if not NULL (the default), path to save log file to. The file extension provided (.rds or .csv) determines the type of file the log data is saved to. Full log data is saved, regardless of verbosity.

Chart Appearance

Arguments that control aspects of chart visualisation

title

Optional string specifying chart title. Overrides df$title.

subtitle

Optional string specifying subtitle. Overrides df$subtitle.

use_caption

Boolean controlling whether the caption is displayed.

override_x_title

String specifying horizontal axis label.

override_y_title

String specifying vertical axis label.

override_y_lim

Optional numeric specifying upper limit of the vertical axis.

x_break

Optional numeric specifying spacing of horizontal axis breaks.

x_date_format

Optional string format for date labels on horizontal axis. Passed to scales::date_format.

x_pad_end

Optional, specifies a minimum end point for the horizontal axis.

extend_limits_to

Optional, specifies a point on the horizontal axis to extend the final limits out to

r1_col

Highlight colour for breaks of rule 1 (points outside the control limits)

r2_col

Highlight colour for breaks of rule 2 (shifts)

point_size

Size of plot points, defaults to 2. See aes_linetype_size_shape for more details.

line_width_sf

Numeric scale factor for plot line widths.

include_annotations

Boolean specifying whether to show centre line labels

basic_annotations

Boolean specifying whether to force use of basic annotation positioning. When TRUE, suggested packages ggrepel and ggpp are not required, but annotation arrows are not supported. Defaults to TRUE for R versions prior to 4.3, FALSE otherwise.

annotation_size

Text size for centre line labels

align_labels

Boolean specifying whether or not to align centre line labels at a fixed vertical position

flip_labels

Boolean specifying whether or not to place centre line labels on different sides of the centre line depending on the direction of change from the previous period

upper_annotation_sf

Numeric scale factor specifying upper vertical position of centre line labels as a multiple of the upper control limit

lower_annotation_sf

Numeric scale factor specifying lower vertical position of centre line labels as a multiple of the lower control limit

annotation_arrows

Boolean specifying whether or not to display arrows connecting centre line labels to the centre line they refer to

annotation_arrow_curve

Numeric curvature of the annotation arrows

override_annotation_dist

Deprecated

override_annotation_dist_P

Deprecated

Value

An SPC ggplot or corresponding data

Examples

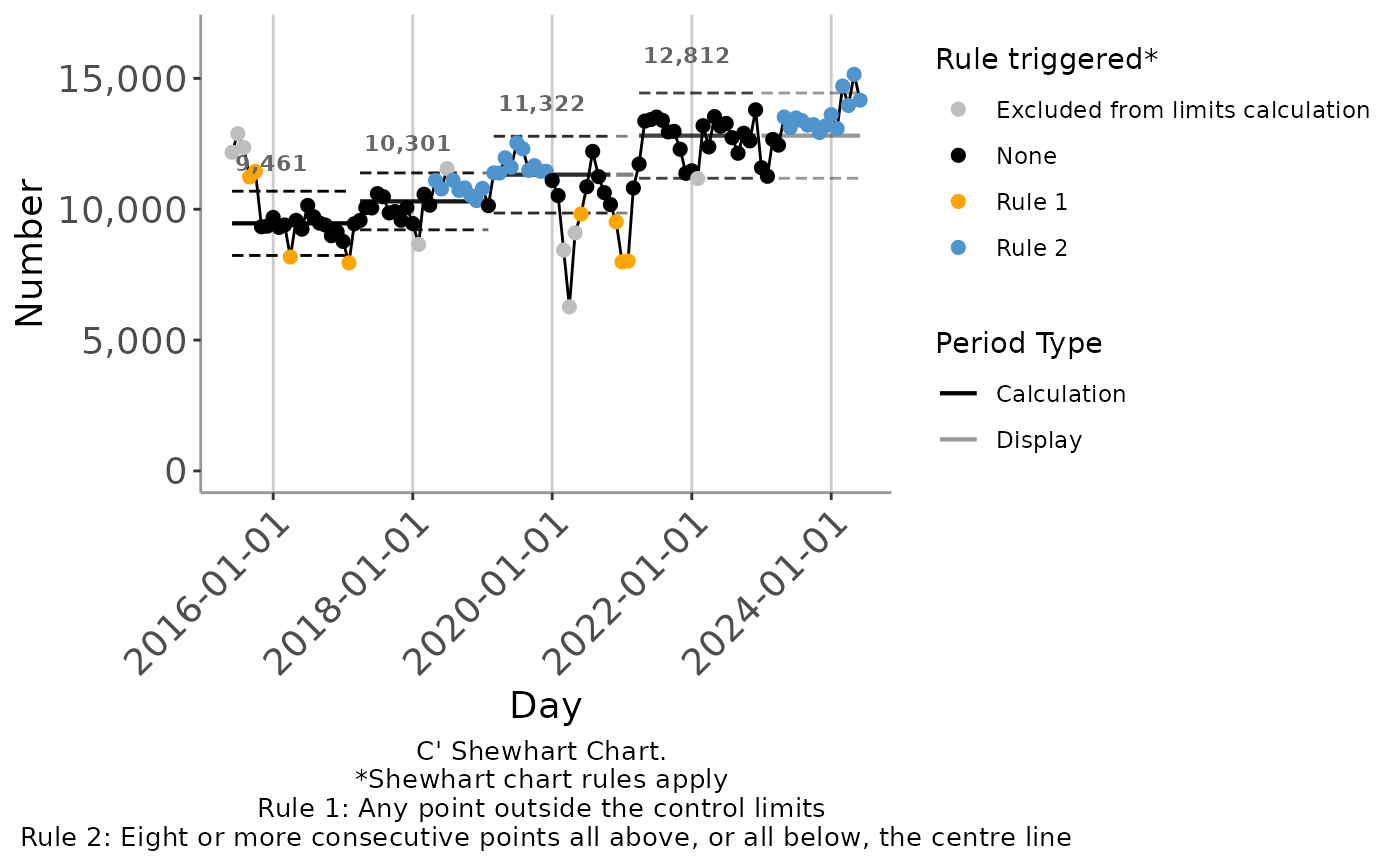

# Using a C' chart to track changes in the count of monthly attendance
autospc(
  ed_attendances_monthly,
  chart_type = "C'",
  x = month_start,
  y = att_all
)
#> Registered S3 methods overwritten by 'ggpp':
#>   method                  from
#>   heightDetails.titleGrob ggplot2
#>   widthDetails.titleGrob  ggplot2


#Using a P' chart to track changes in the percentage admitted within 4 hours
autospc(
  ed_attendances_monthly,
  chart_type = "P'",
  x = month_start,
  y = within_4h,
  n = att_all
)


#using a shift_rule_threshold of 7 when tracking monthly attendance
autospc(
  ed_attendances_monthly,
  chart_type = "C'",
  x = month_start,
  y = att_all,
  shift_rule_threshold = 7
)
